Mystery Roll
Music Roll Has Center Sprocket Holes
by Philip Jamison (030116 MMDigest)

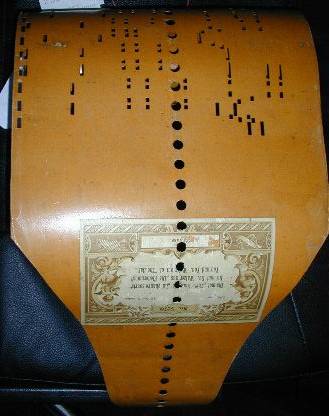

jamison_mystery1a.jpg (22 kb)I have three "mystery rolls" I'd like to identify.  They are of rather heavy card and are 10-1/4" (26 cm) wide,  and look like they play a mechanical piano or organ with a center drive sprocket.

Pictures attached.  Thanks!

Philip Jamison
West Chester, PA
16 Jan 2003 16:48:58 -0500

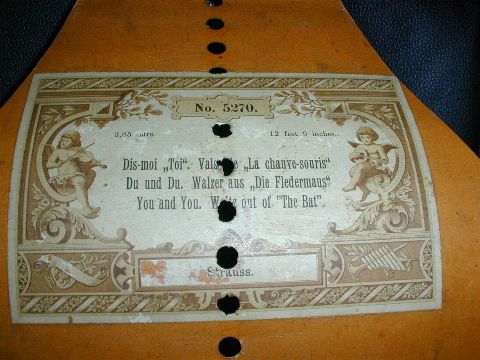

Ed. note:  The cardboard roll has a chain of large round holes, about 7 mm (.27") diameter, for a sprocket drive running down the middle, reminiscent of a sprocket drive music box disc.  The note holes, however, are made with a square punch, just like book music.  I measured the channel distances from the photo and estimate that the instrument played 61 to 65 notes.  The note spacing is about 3.7 mm, or 6.85 notes per inch.






16 January 2003
