Hello!  I read with interest several recent posts regarding the
Pratt-Read 6-point wind motor.  A newly acquired 1923 Straube player is
cleaning up and coming along nicely except for the 6-point wind motor.

On arrival the Straube only wheezed even with furious pumping.  The
last glue job on the top three little bellows was giving way, so
I chipped off the old carefully, reglued carefully, and the Straube
came to life (in a weakened condition, still needing too much pumping).

Next I tackled the pumping bellows unit which would hold vacuum for
about six seconds.  By shellacking cracked old boards and tightening
screws I got the pumping unit to hold vacuum for 15 seconds, but no
improvement in performance.

Back to the wind motor.  Slowing the crankshaft with my fingers while
pumping firmly, I notice that the wind motor hisses only with the
crankshaft in three particular positions.  So I removed the teeter-totter
boards and found what you see in the photos.

Are the sliders and their mating surfaces leaking?  Would a good
graphite rubdown fix this situation, or am I looking at a resurfacing
to stop the leaks?

Thanks to all at MMD for providing such a broad range of information
and technical knowledge which helps others to preserve and enjoy these
irreplaceable antiques.

Jim Wade

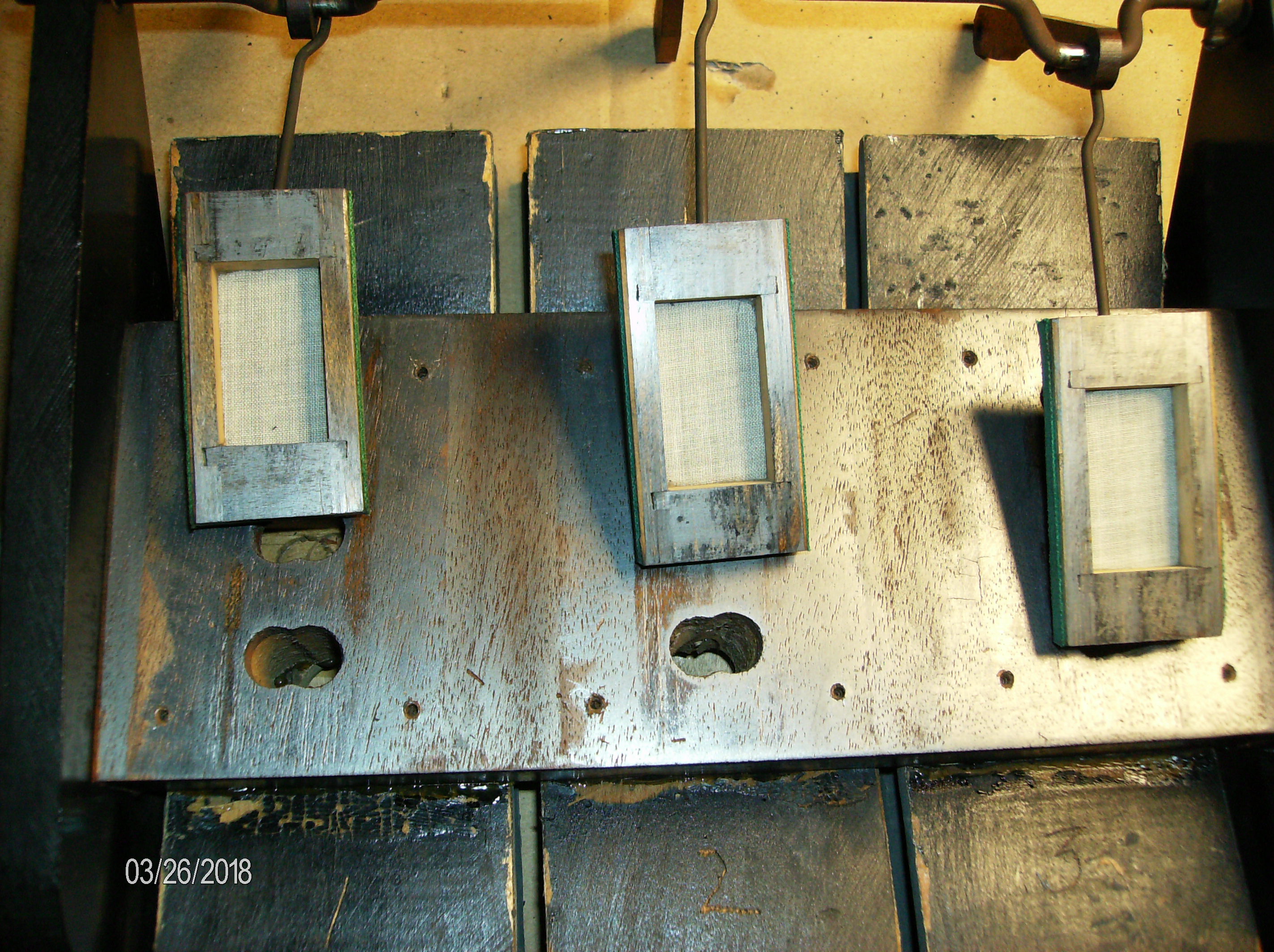

 [   1923 Straube wind motor
 [ http://www.mmdigest.com/Attachments/18/03/26/180326_181713_Straube%20032618%20005.JPG

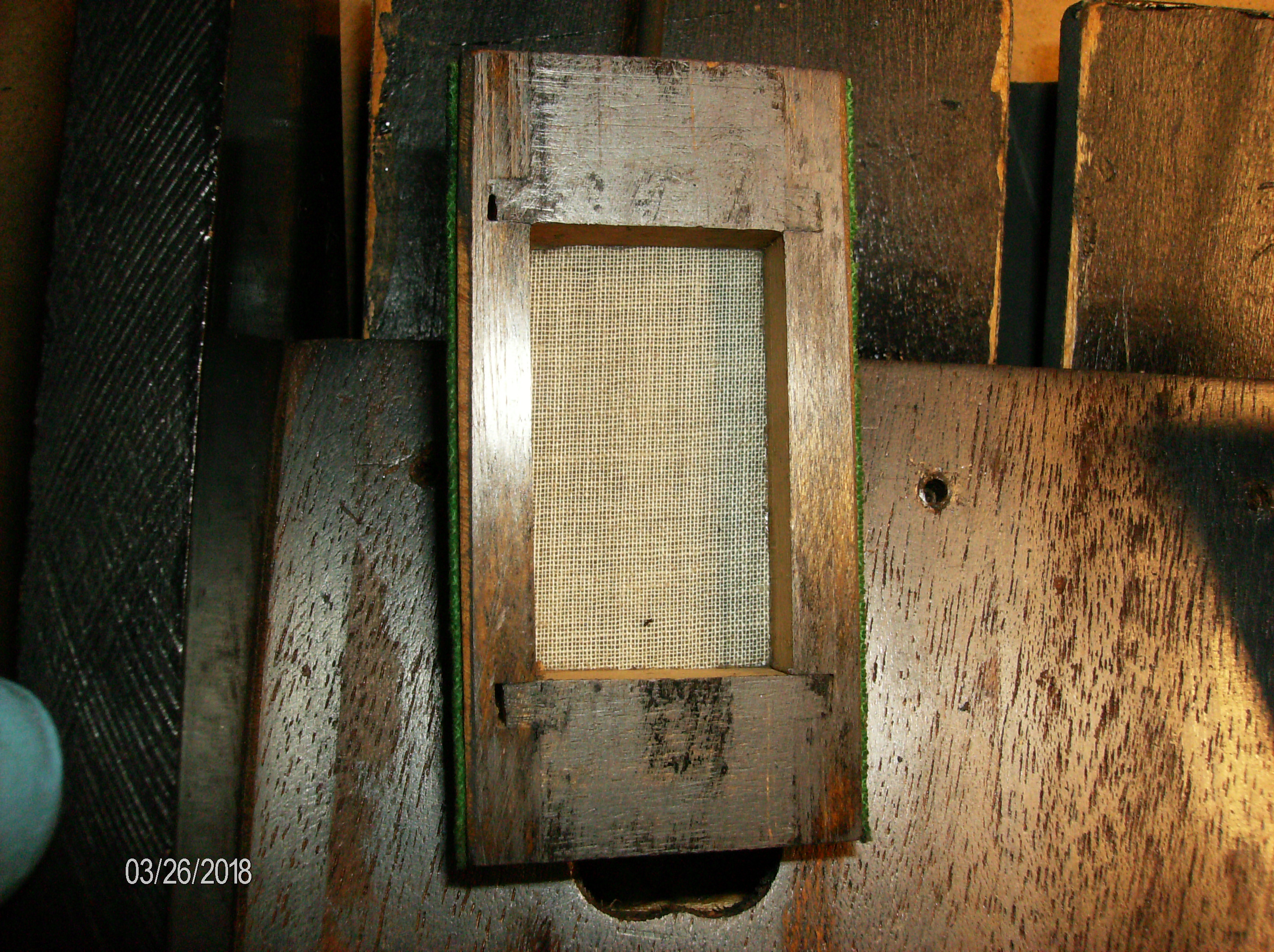

 [   1923 Straube wind motor slider
 [ http://www.mmdigest.com/Attachments/18/03/26/180326_181713_Straube%20032618%20006.JPG

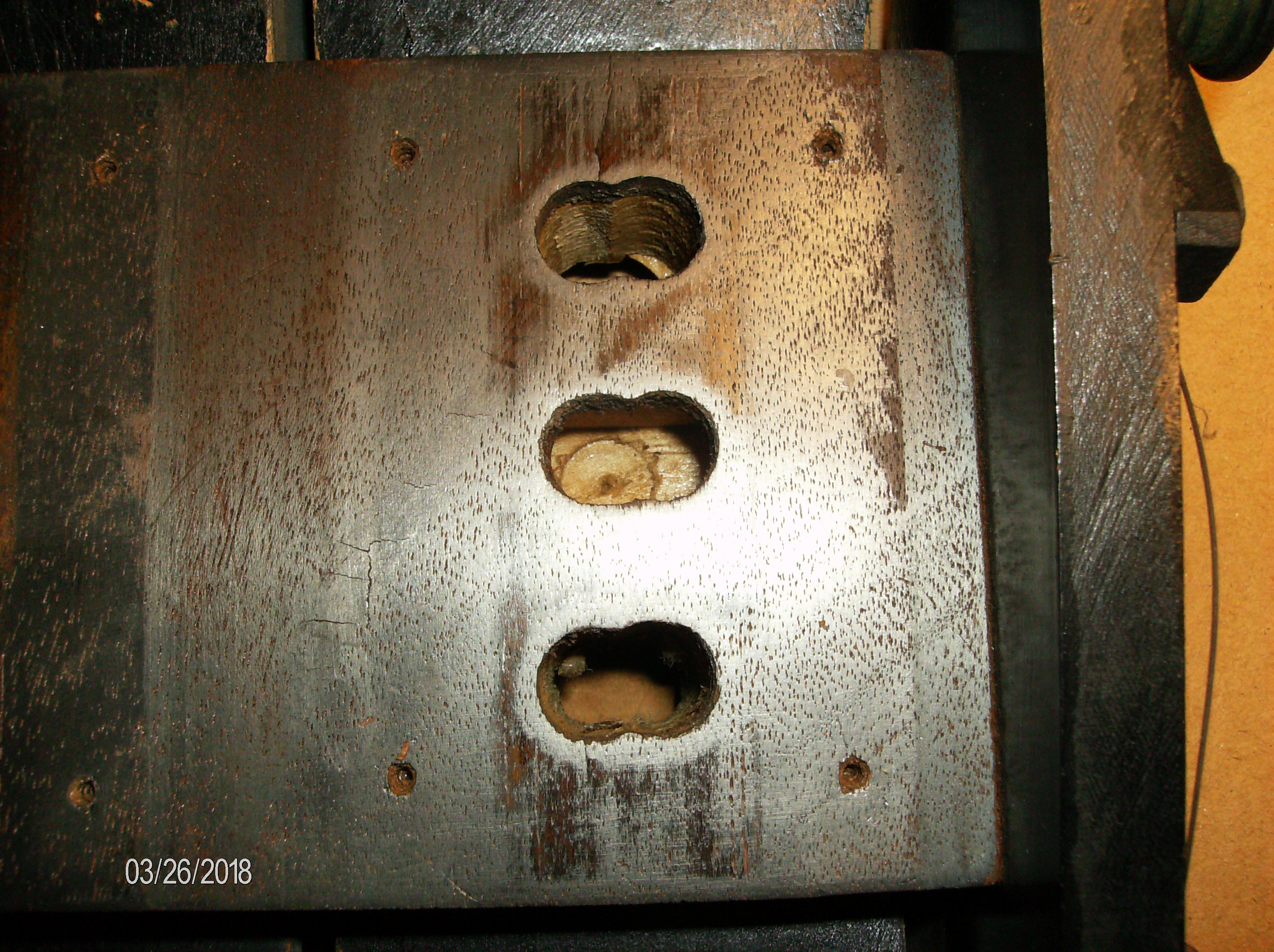

 [   1923 Straube wind motor ports
 [ http://www.mmdigest.com/Attachments/18/03/26/180326_181713_Straube%20032618%20011.JPG
