control system (proposed)
by Robbie Rhodes

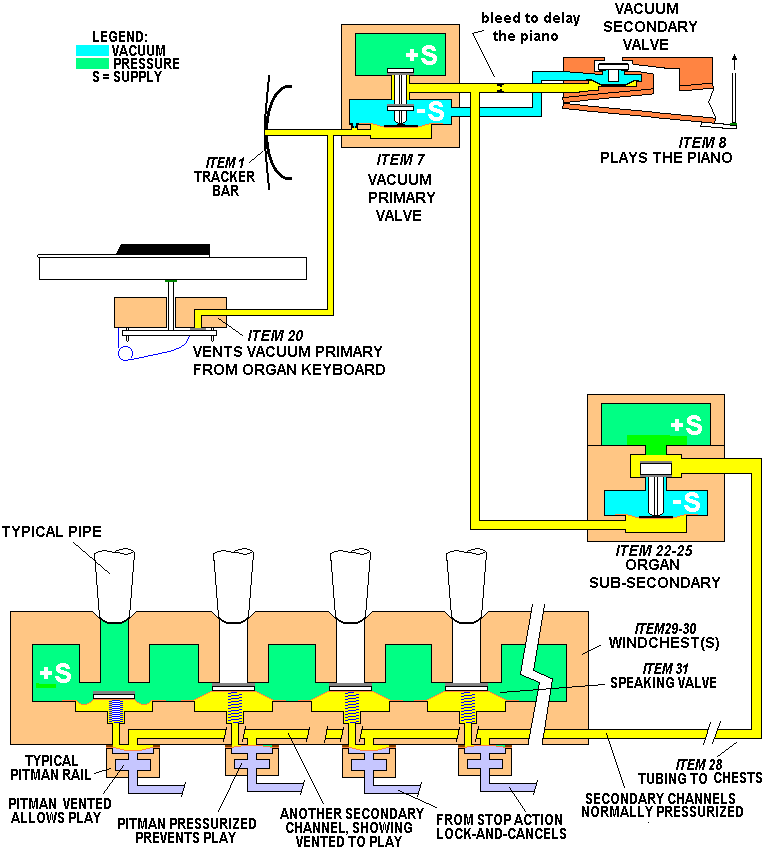

Robbie's proposed control system
Click here to view actual size

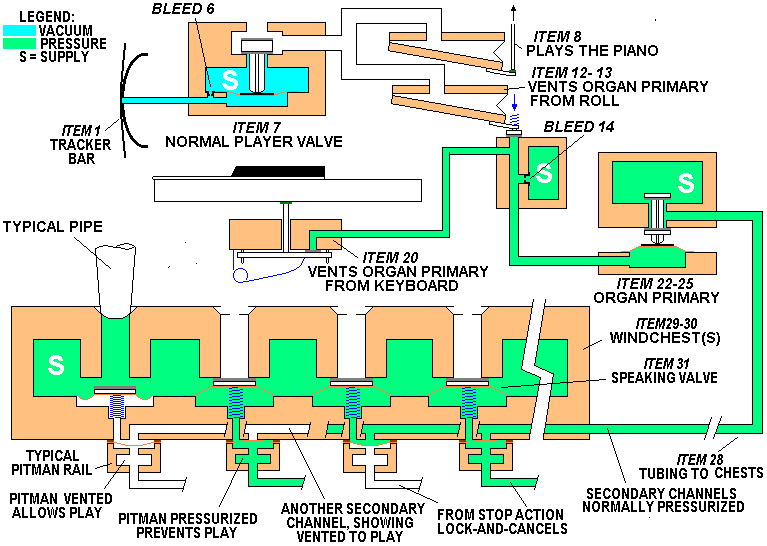

Drawing by Richard "Zeb" Vance, 07 July 2003, showing the same system
as Reproduco Figure 3.
The item numbers are as in Reproduco Figure 3, explained in the text
of image file reproduco_ib05.png

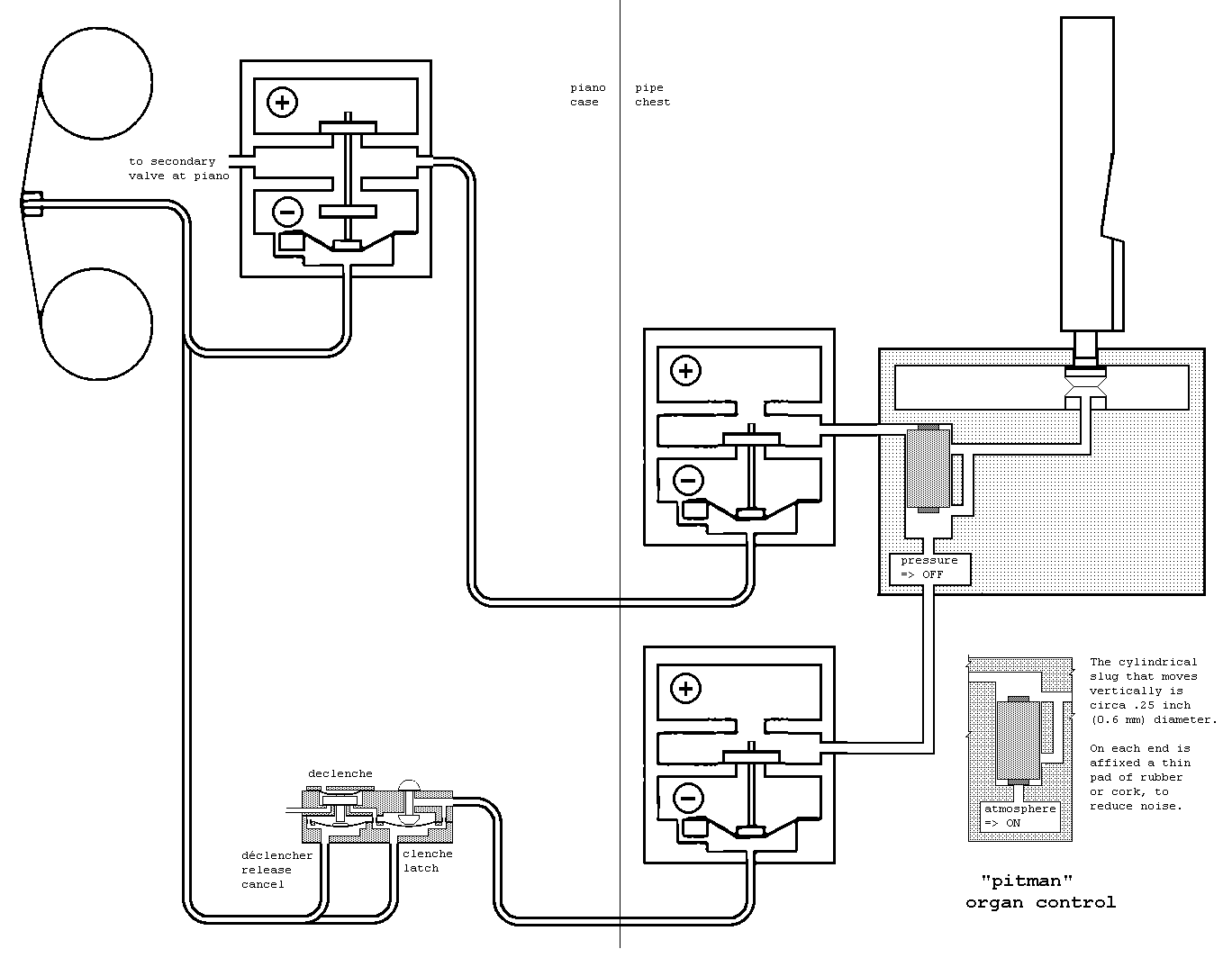

Drawing by Robbie Rhodes, 08 July 2003, incorporating suggestions from
Zeb.
08 July 2003
