MK4 Roll Scanner Circuit Board Photo
By Terry Smythe

[ Ref. Michael Swanson in 161008 MMDigest --

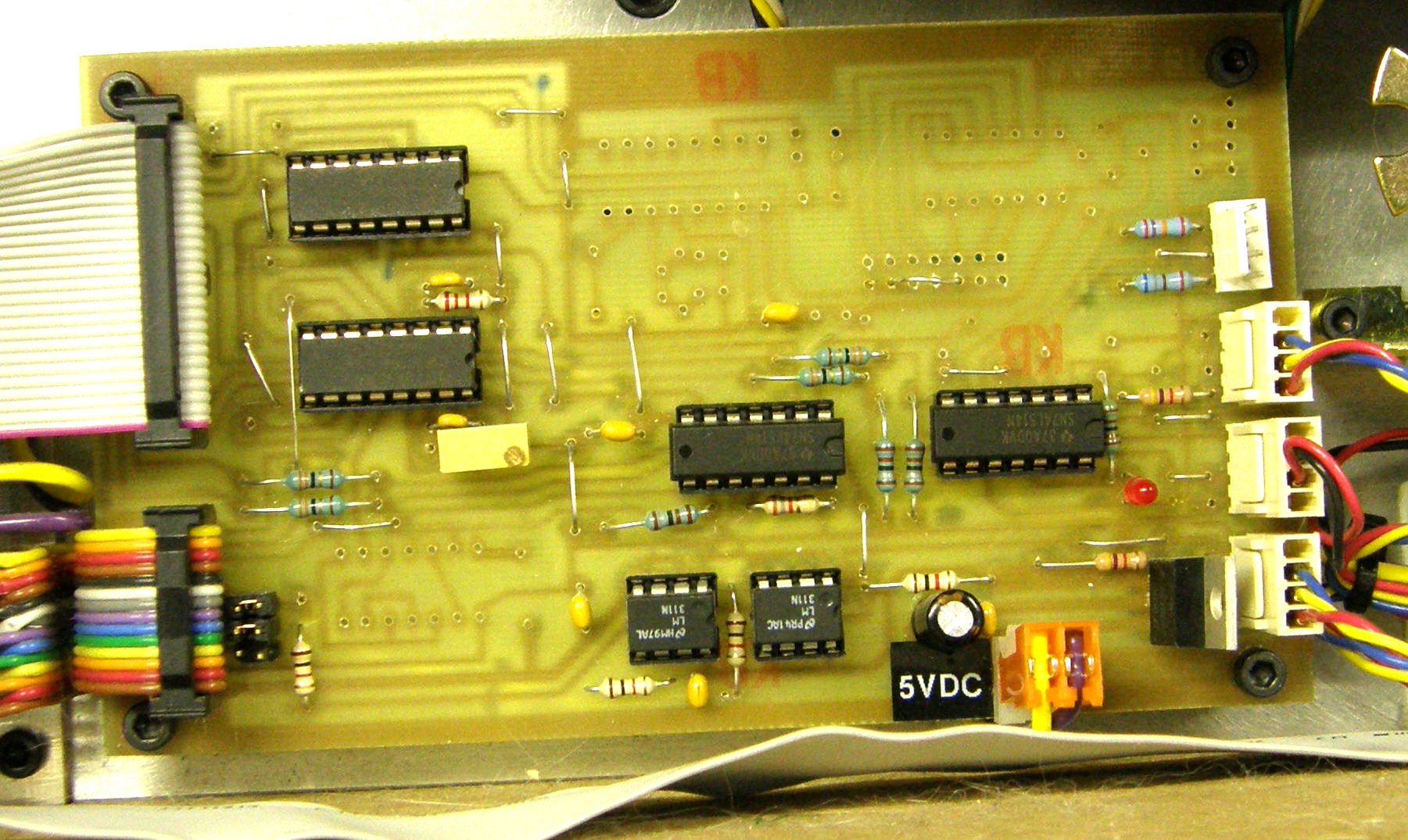

Hi Robbie,  Here's is a better picture of the MK4 scanner circuit board.

Regards,

Terry Smythe
Winnipeg, Manitoba, Canada

 [ MK4_Face_26Aug08.jpg (1,218 kb)
 [ http://www.mmdigest.com/Attachments/16/10/10/161010_144403_MK4_Face_26Aug08.jpg
Attachment thumbnail

(Message sent Mon, 10 Oct 2016 15:19:18 -0500 , from time zone -0500.)
